Stainless Steel XM19 Fasteners
Stainless Steel XM19 Fasteners, XM19 Stainless Steel Foundation Bolts, Stainless Steel UNS S20910 Threaded Stud, Grade SS XM19 Structural Bolts Suppliers in India.
Ranfit Metal & Alloys is a renowned manufacturer and trader of Stainless Steel XM19 Fasteners, which remains non-magnetic even after being severely cold worked. Stainless Steel XM19 Nuts has a blend of strength and corrosion resistance that is better than other alloys. Stainless Steel XM19 Bolts is a nitrogen-strengthened austenitic stainless steel with excellent corrosion resistance. Stainless Steel XM19 Stud Bolts provides a combination of corrosion resistance and strength that is not found in any other commercial material available in its price range. Stainless Steel XM19 Washers is a highly fabricable, nitrogen strengthened and highly weldable steel. The high strength, low magnetic permeability, and corrosion resistance of Stainless Steel XM19 Screws allows it to be used as a material for medical implants. Stainless Steel XM19 Round Bars is used in shafts, stems and pins in chokes, valves, and pumps in oil & gas industry.
The mechanical properties of Stainless Steel XM19 Bars at both elevated and sub-zero temperatures are very good. Stainless Steel XM19 Rods is also capable of nearly double the yield strength of similar austenitic grades. Stainless Steel UNS S20910 Fasteners can be machined, welded, and cold worked using the same equipment and methods used for the conventional 300 series stainless steels. In addition, Stainless Steel Nitronic 50 Fasteners is available in an annealed or high strength condition. Stainless Steel Nitronic 50 Nuts has outstanding resistance to hydrochloric acid at all concentrations and temperatures.
ASTM A320 Stainless Steel XM19 Star Washers, Stainless Steel XM19 Hex Head Screw, Grade Stainless Steel XM19 Industrial Fasteners, ASME SA320 XM19 Stainless Steel Nut Supplier & Exporter in India.
Stainless Steel XM19 Fasteners Specification
| Grade | Stainless Steel ASTM Stainless Steel XM19 | UNS S20910 |
|---|---|
| Specifications | ASTM / ASME – A/ SA 320 |
| Size | M4-M100 (1/4-4 inch), Custom Sizes |
| Length | M02 to M33 |
| Standards | ANSI , DIN, ASME, ASTM |
| Types of Stainless Steel XM19 Nut | Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc. |
| Types of Stainless Steel XM19 Screw | Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc. |
| Types of Stainless Steel XM19 Washer | Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc. |
| Threads Of Fasteners | UNF UNC, BSW, METRIC, BSF |
| Standard | ASME B18.2.2 ASME B16.5 ASME B18.5 ANSI B 18.2.4 2M DIN = DIN 931, DIN 933, DIN 934, DIN 970 ISO = ISO 4033, ISO 4032, JIS UTS = UNF, NPTF, NPT, UNC, UNEF, UNS |
| Type | Washers | Nuts | Screws | Bolts | Stud Bolts |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
Stainless Steel XM19 Equivalent Grade
| Grade | ASTM / ASME | UNS |
| SS XM19 | A/SA 320 | S20910 |
Chemical Composition of Stainless Steel XM19 Fasteners
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| SS XM19 | min. max. |
– 0.06 |
4.0 6.0 |
– 1.00 |
– – |
– – |
20.5 23.5 |
– | 11.5 13.5 |
– |
Mechanical Properties of Stainless Steel XM19 Fasteners
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max |
||||
| SS XM19 | 100 KSi | 55 KSi | 35% | 55% | 293 |
Types of Stainless Steel XM19 Fasteners

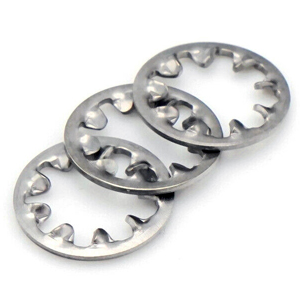

Stainless Steel XM19 Star Washers

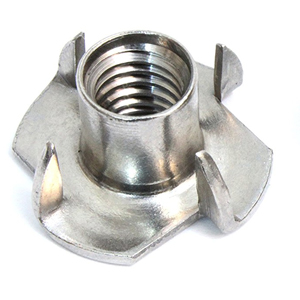

Stainless Steel XM19 T Nuts

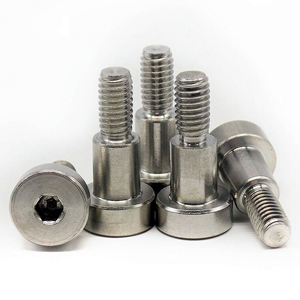

Stainless Steel XM19 Shoulder Bolts

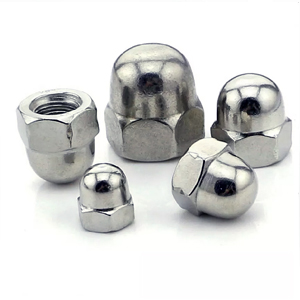

Stainless Steel XM19 Dome/Accorn Nut

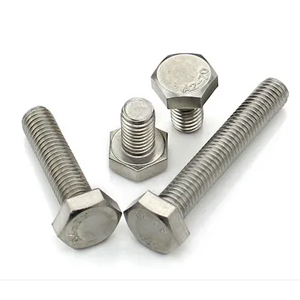

Stainless Steel XM19 Hex Bolts

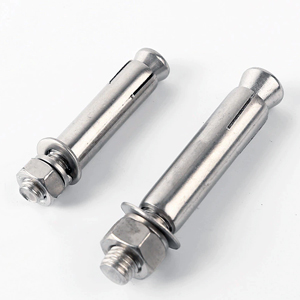

Stainless Steel XM19 Anchor Bolts

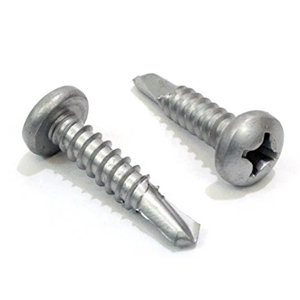

Stainless Steel XM19 Self Drilling Screws

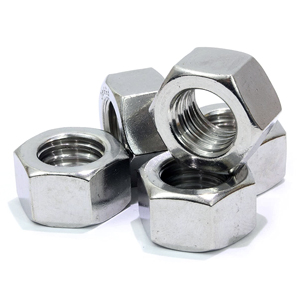

Stainless Steel XM19 Hex Nuts

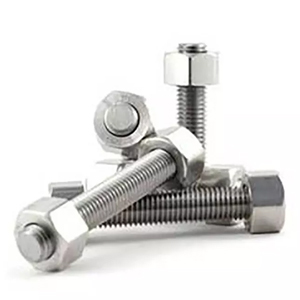

Stainless Steel XM19 Stud Bolts

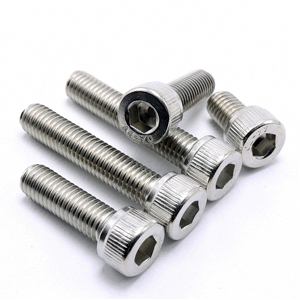

Stainless Steel XM19 Allen Cap Screw

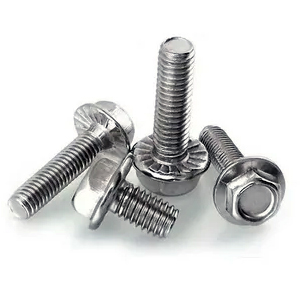

Stainless Steel XM19 Flanged Bolts

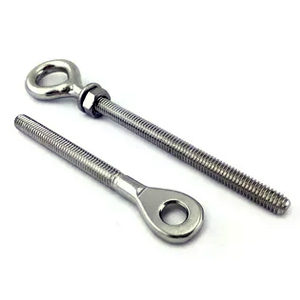

Stainless Steel XM19 Eye Bolts

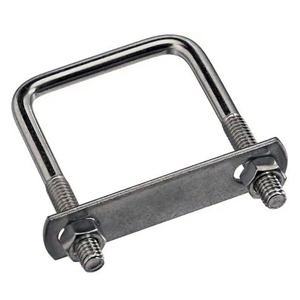

Stainless Steel XM19 Square U-Bolts

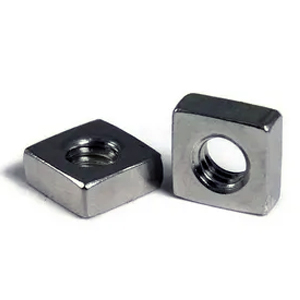

Stainless Steel XM19 Square Nuts

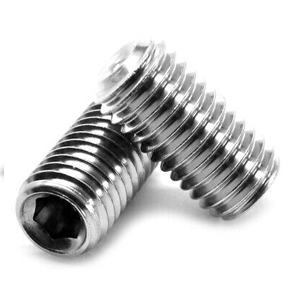

Stainless Steel XM19 Socket Set Screw

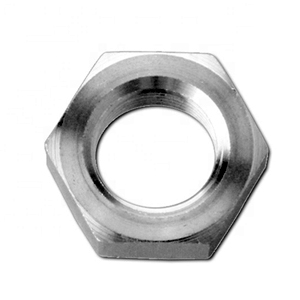

Stainless Steel XM19 Panel Nuts

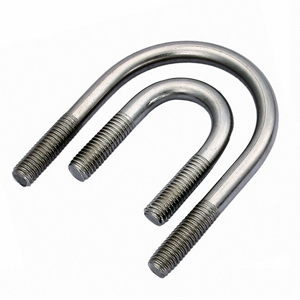

Stainless Steel XM19 U Bolt
Stainless Steel XM19 Square Nuts
Stainless Steel XM19 Fasteners Forms & Availability
| Products | Size | |
|---|---|---|
| Stainless Steel XM19 Stud Bolt | Stainless Steel XM19® Alloy Bolts | Sizes M02 - M160 |
| Stainless Steel XM19 Punched Washer | Stainless Steel XM19 Pan Head Screw | |
| Stainless Steel XM19 Square Nut | Stainless Steel XM19 Insert Nuts | |
| Stainless Steel XM19 Welding Studs | Stainless Steel XM19 Pan Head Screw | |
| Stainless Steel XM19 Cap Screw | Stainless Steel XM19 Foundation Bolts | |
| Stainless Steel XM19 Threaded Rod | Stainless Steel XM19 Hex Head Bolts | |
| Stainless Steel XM19 Nuts | Stainless Steel XM19 Washers | |
| Stainless Steel XM19 Fender Washer | Stainless Steel XM19® Alloy Lock Nut | |
| Stainless Steel XM19 Countersunk Slotted Screw | Stainless Steel XM19 Double Ended Stud | |
Stainless Steel XM19 Nuts Size Chart
| Nut Size (mm) |
Diameter* (mm) |
Height (mm) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | – |
| 2.5 | 5 | 2 | 1.6 | – |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | – |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
| * This is the diameter across the flats. It is also the size of wrench to use. | ||||
Stainless Steel XM19 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
Stainless Steel XM19 Washers Size Chart
| Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
|
| #2 | – | – | – | 3/32″ | 1/4″ | 0.020″ |
| #4 | – | – | – | 1/8″ | 5/16″ | 0.032″ |
| #6 | – | – | – | 5/32″ | 3/8″ | 0.049″ |
| #8 | – | – | – | 3/16″ | 7/16″ | 0.049″ |
| #10 | – | – | – | 7/32″ | 1/2″ | 0.049″ |
| #12 | – | – | – | 1/4″ | 9/16″ | 0.065″ |
| 1/4″ | 5/16″ | 0.734″ | 0.065″ | 9/32″ | 5/8″ | 0.065″ |
| 5/16″ | 3/8″ | 7/8″ | 0.083″ | 11/32″ | 11/16″ | 0.065″ |
| 3/8″ | 7/16″ | 1″ | 0.083″ | 13/32″ | 13/16″ | 0.065″ |
| 7/16″ | 1/2″ | 1-1/4″ | 0.083″ | 15/32″ | 15/16″ | 0.065″ |
| 1/2″ | 9/16″ | 1-3/8″ | 0.109″ | 17/32″ | 1-1/16″ | 0.095″ |
| 9/16″ | 5/8″ | 1-15/32″ | 0.109″ | 19/32″ | 1-5/32″ | 0.095″ |
| 5/8″ | 11/16″ | 1-3/4″ | 0.134″ | 21/32″ | 1-5/16″ | 0.095″ |
| 3/4″ | 13/16″ | 2″ | 0.148″ | 13/16″ | 1-15/32″ | 0.134″ |
| 7/8″ | 15/16″ | 2-1/4″ | 0.165″ | 15/16″ | 1-3/4″ | 0.134″ |
| 1″ | 1-1/16″ | 2-1/2″ | 0.165″ | 1-1/16″ | 2″ | 0.134″ |
| 1-1/8″ | 1-1/4″ | 2-3/4″ | 0.165″ | – | – | – |
| 1-1/4″ | 1-3/8″ | 3″ | 0.165″ | – | – | – |
| 1-3/8″ | 1-1/2″ | 3-1/4″ | 0.180″ | – | – | – |
| 1-1/2″ | 1-5/8″ | 3-1/2″ | 0.180″ | – | – | – |
| 1-5/8″ | 1-3/4″ | 3-3/4″ | 0.180″ | – | – | – |
| 1-3/4″ | 1-7/8″ | 4″ | 0.180″ | – | – | – |
| 2″ | 2-1/8″ | 4-1/2″ | 0.213″ | – | – | – |
Stainless Steel XM19 Hex Bolt Dimension
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM | ACROASTM THE FLATS | ACROASTM CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel XM19 Hex Nuts Dimensions Table
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats |
Width Across Corners |
Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.SS UNS S20910 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Torque Stainless Steel XM19 Fasteners
| Torque FT-LBS - Stainless Steel XM198 Bolts | |||
|---|---|---|---|
| BOLTS DIA |
Torque FT-LBS | ||
| 30% Initial Torque |
70% Torque |
100% Final Torque |
|
| 1/2 | 17 | 39 | 55 |
| 9/16 | 24 | 55 | 80 |
| 5/8 | 33 | 77 | 110 |
| 3/4 | 59 | 137 | 195 |
| 7/8 | 93 | 217 | 310 |
| 1 | 140 | 325 | 465 |
| 1.1/8 | 205 | 480 | 685 |
| 1¼ | 288 | 672 | 960 |
| 1.3/8 | 391 | 915 | 1305 |
| 1½ | 518 | 1208 | 1725 |
| 1.9/16 | 588 | 1372 | 1960 |
| 1.5/8 | 668 | 1558 | 2225 |
| 1¾ | 840 | 1960 | 2800 |
| 1.7/8 | 1044 | 2436 | 3480 |
| 2 | 1280 | 2985 | 4265 |
| 2¼ | 1850 | 4315 | 6165 |
| 2½ | 2565 | 5985 | 8550 |
| 2¾ | 3121 | 7282 | 10400 |
| 3 | 4080 | 9520 | 13600 |
| Torque Nm -Stainless Steel XM19 Bolts | |||
| BOLTS DIA |
Torque Nm | ||
| 30% Initial Torque |
70% Torque |
100% Final Torque |
|
| 1/2 | 23 | 53 | 75 |
| 9/16 | 33 | 75 | 108 |
| 5/8 | 45 | 104 | 149 |
| 3/4 | 80 | 186 | 264 |
| 7/8 | 126 | 294 | 420 |
| 1 | 190 | 441 | 630 |
| 1.1/8 | 278 | 651 | 929 |
| 1¼ | 390 | 911 | 1302 |
| 1.3/8 | 530 | 1241 | 1769 |
| 1½ | 702 | 1638 | 2339 |
| 1.9/16 | 797 | 1860 | 2657 |
| 1.5/8 | 906 | 2112 | 3017 |
| 1¾ | 1139 | 2657 | 3796 |
| 1.7/8 | 1415 | 3303 | 4718 |
| 2 | 1735 | 4047 | 5783 |
| 2¼ | 2508 | 5850 | 8359 |
| 2½ | 3478 | 8115 | 11592 |
| 2¾ | 4232 | 9873 | 14101 |
| 3 | 5532 | 12907 | 18439 |
Stainless Steel XM19 Wood Screws Dimensions
| Screw Number | Max. Head Diameter | Shank Diameter | Root Diameter | Threads Per Inch |
||
|---|---|---|---|---|---|---|
| Basic Decimal Size | Nearest Fractional Equivelant |
Average Decimal Size |
Nearest Fractional Equivelant |
|||
| 0 | .119 | .060 | 1/16 | .040 | 3/64 | 32.00 |
| 1 |
.146 | .073 | 5/64 | .046 | 3/64 | 28.00 |
| 2 | .172 | .086 | 3/32 | .054 | 1/16 | 26.00 |
| 3 | .199 | .099 | 7/64 | .065 | 1/16 | 24.00 |
| 4 | .225 | .112 | 7/64 | .075 | 5/64 | 22.00 |
| 5 | .252 | .125 | 1/8 | .085 | 5/64 | 20.00 |
| 6 | .279 | .138 | 9/64 | .094 | 3/32 | 18.00 |
| 7 | .305 | .151 | 5/32 | .102 | 7/64 | 16.00 |
| 8 | .332 | .164 | 5/32 | .112 | 7/64 | 15.00 |
| 9 | .358 | .177 | 11/64 | .122 | 1/8 | 14.00 |
| 10 | .385 | .190 | 3/16 | .130 | 1/8 | 13.00 |
| 11 | .411 | .203 | 13/64 | .139 | 9/64 | 12.00 |
| 12 | .438 | .216 | 7/32 | .148 | 9/64 | 11.00 |
| 14 | .491 | .242 | 1/4 | .165 | 5/32 | 10.00 |
| 16 | .544 | .268 | 17/64 | .184 | 3/16 | 9.00 |
| 18 | .597 | .294 | 19/64 | .204 | 13/64 | 8.00 |
| 20 | .650 | .320 | 5/16 | .233 | 7/32 | 8.00 |
| 24 | .756 | .372 | 3/8 | .260 | 1/4 | 7.00 |
Stainless Steel XM19 Flat Washer Dimensions Chart
| Bolt Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| OD (in.) | ID (in.) | Thickness | OD (in.) | ID (in.) | Thickness | |
| 1/8 (#6) | 0.375 | 0.156 | .036/.065 | |||
| 5/32 (#8) | 0.438 | 0.188 | .036/.065 | |||
| 3/16 (#10) | 0.560 | 0.250 | .036/.065 | 0.500 | 0.220 | .036/.065 |
| 7/32 (#12) | 0.562 | 0.250 | .051/.080 | |||
| 1/4 (#14) | 0.734 | 0.312 | .051/.080 | 0.625 | 0.281 | .051/.080 |
| 5/16 | 0.875 | 0.375 | .064/.104 | 0.688 | 0.344 | .051/.080 |
| 3/8 | 1.000 | 0.438 | .064/.104 | 0.812 | 0.406 | .051/.080 |
| 7/16 | 1.250 | 0.500 | .064/.104 | 0.922 | 0.469 | .051/.080 |
| 1/2 | 1.375 | 0.562 | .086/.132 | 1.062 | 0.531 | .074/.121 |
| 9/16 | 1.469 | 0.625 | .086/.132 | 1.156 | 0.594 | .074/.121 |
| 5/8 | 1.750 | 0.688 | .108/.160 | 1.312 | 0.656 | .074/.121 |
| 3/4 | 2.000 | 0.812 | .122/.177 | 1.469 | 0.812 | .108/.160 |
| 7/8 | 2.250 | 0.938 | .136/.192 | 1.750 | 0.938 | .108/.160 |
| 1 | 2.500 | 1.062 | .136/.192 | 2.000 | 1.062 | .108/.160 |
| 1 1/8 | 2.750 | 1.250 | .136/.192 | 2.250 | 1.250 | .108/.160 |
| 1 1/4 | 3.000 | 1.375 | .136/.192 | 2.500 | 1.375 | .136/.192 |
| 1 3/8 | 3.250 | 1.500 | .153/.213 | 2.750 | 1.500 | .136/.213 |
| 1 1/2 | 3.500 | 1.625 | .153/.213 | 3.000 | 1.625 | .153/.213 |
| 1 5/8 | 3.750 | 1.750 | .153/.213 | |||
| 1 3/4 | 4.000 | 1.875 | .153/.213 | |||
| 1 7/8 | 4.250 | 2.000 | .153/.213 | |||
| 2 | 4.500 | 2.125 | .153/.213 | |||
| 2 1/4 | 4.750 | 2.375 | .320/.248 | |||
| 2 1/2 | 5.000 | 2.625 | .210/.280 | |||
| 2 3/4 | 5.250 | 2.875 | .228/.410S | |||
| 3 | 5.500 | 3.125 | .249/.327 | |||
Stainless Steel XM19 Socket Head Cap Screw Dimensions Schedule
| Nominal | Thread. | Hex Socket Size | Body diameter and Head height | Head Dia | Soc. length | ||
|---|---|---|---|---|---|---|---|
| Size | Pitch | Max | Min | Max | Min | ||
| J | D /H | A | K | ||||
| M3 | 0.5 | 2.50 | 3.00 | 2.86 | 5.50 | 5.20 | 1.3 |
| M4 | 0.70 | 3.00 | 4.00 | 3.82 | 7.00 | 6.64 | 2.00 |
| M5 | 0.8 | 4.00 | 5.00 | 4.82 | 8.50 | 8.14 | 2.70 |
| M6 | 1.0 | 5.00 | 6.00 | 5.82 | 10.00 | 9.64 | 3.30 |
| M8 | 1.25 | 6.00 | 8.00 | 7.78 | 13.00 | 12.57 | 4.3 |
| M10 | 1.5 | 8.00 | 10.00 | 9.78 | 16.00 | 15.57 | 5.50 |
| M12 | 1.75 | 10.00 | 12.00 | 11.73 | 18.00 | 17.57 | 6.60 |
| M16 | 2.0 | 14.00 | 16.00 | 15.73 | 24.00 | 23.48 | 8.80 |
| M20 | 2.5 | 17.00 | 20.00 | 19.67 | 30.00 | 29.48 | 10.70 |
| M24 | 3.0 | 19.00 | 24.00 | 23.67 | 36.00 | 35.38 | 12.90 |
Other Types of Stainless Steel XM19 Fasteners
| SS UNS S20910 Washers Exporter | Stainless Steel XM19 Stud Bolt |
| ASTM A 320 Stainless Steel XM19 Fender Washer | XM19 Stainless Steel Bolts Manufacturer |
| Grade SS XM19 Cap Screw Manufacturer | Stainless Steel XM19 Foundation Bolts |
| ASME SA320 XM19 Stainless Steel Square Nut Exporter | SS XM19 Pan Head Screw Stockist |
| Stainless Steel XM19 Double Ended Stud | Stainless Steel XM19 Pan Head Screw |
| XM19 SS Bolts Manufacturer | XM19 SS Tie Bar Exporter |
| Stainless Steel XM19 Square Bolts Supplier | ASME SA320 XM19 Stainless Steel Punched Washer Distributor |
| SS XM19 Lock Nut Supplier | Grade SS XM19 Coupler Nuts |
| Stainless Steel XM19 Flat Washer | ASTM A 320 Stainless Steel XM19 Locking Nuts Manufacturer |
| XM19 Stainless Steel Studbolt | SS UNS S20910 Countersunk Slotted Screw |
