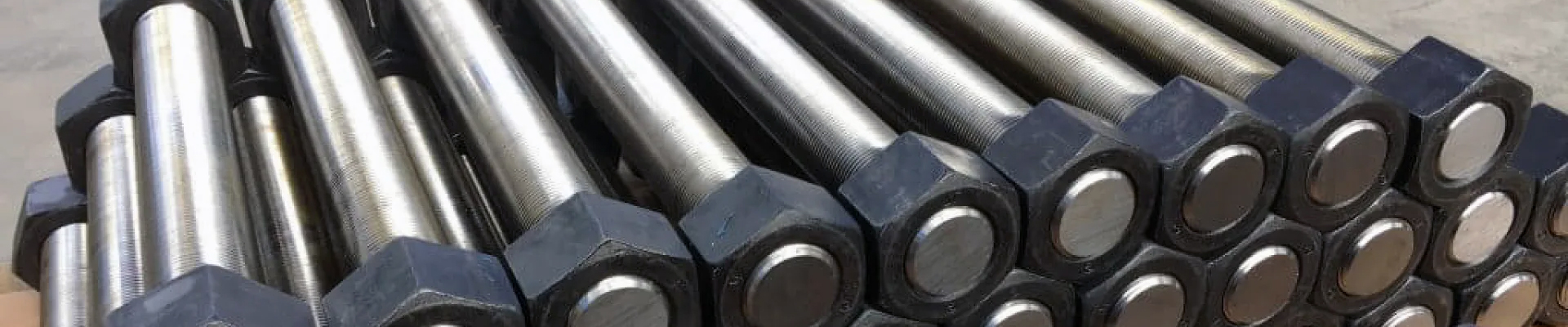

Stainless Steel 321 Stud Bolts
SS UNS S32100 Tie Bar, Stainless Steel 321 Anchor Bolt, SS JIS SUS 321 Stud Bolts, ASTM A193 SS 321 Threaded Stud Rod Suppliers in India.
Ranfit Metal & Alloys is a recognized distributor of SS 321 Stud Bolts, which can be hardened only by cold working. Stainless Steel 321 Stud Bolts possesses good low temperature toughness. These Stud Bolts has good resistance to corrosion and oxidation along with good creep strength. Due to the titanium addition in these Stud Bolts, the resistance to inter-granular corrosion is also guaranteed in the welded condition. These Stud Bolts are used for heavy-duty exhaust systems and manifolds. 321 Stainless Steel Stud Bolts finds application in heavy welding components, along with dynamic environments that are subject to changes.
321 SS Stud Bolts combines high strength, resistance to scaling and phase stability with resistance to subsequent aqueous corrosion. Preheating is not necessary for Stainless Steel UNS S32100 Stud Bolts, because it has good low temperature toughness. UNS S32100 Stainless Steel Stud Bolts is often used in hot petroleum gases, nitric acid, steam combustion gases, and to a lesser extent sulfuric acid. A limitation with Alloy 321 Stud Bolts is that titanium does not transfer well across a high temperature arc, so is not recommended as a welding consumable. Grade 321 Stud Bolts is used for welding under conditions which prevent a post-weld anneal. Type 321 Stud Bolts is also advantageous for high temperature service because of its good mechanical properties.
ASME SA193 SS 321 Threaded Rod, SS DIN 1.4541 Stud Bolts, Stainless Steel 321 Double Ended Stud, SS EN X6CrNiTi18-10 High Pressure Stud Bolts Supplier & Exporter in India.
Stainless Steel 321 Stud Bolts Specification
| Grade | Stainless Stel 321 (S32100) |
|---|---|
| SS 321 Stud Bolt size | M02 to M33, Custom Sizes |
| SS 321 Stud Bolts Length | 3 mm to 200 mm |
| SS 321 Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Stud Bolts | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13218, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form of SS 321 Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| SS 321 Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Stud Bolt | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| SS 321 Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Stainless Steel 321 Stud Bolt Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
Chemical Composition of SS 321 Stud Bolt
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | 0.10 max | 9.00 - 12.00 | 5(C+N) – 0.70 max |
Mechanical Properties of SS 321 Stud Bolt
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Types of Stainless Steel 321 Stud Bolt
Stainless Steel 321 Tap End Stud Bolts
Stainless Steel 321 Double End Stud Bolt
Stainless Steel 321 Fully Threaded Stud Bolts
Stainless Steel 321 Stud Bolts with Reduced Shank
Stainless Steel 321 Flange Stud Bolts
Stainless Steel 321 Tie Bar
Stainless Steel 321 Wheel Lug Stud Bolt
Stainless Steel 321 Reduced Shank
Stainless Steel 321 Weld Studs
SS 321 Stud Bolt Forms & Availability
| Products | Size | |
|---|---|---|
| Stainless Steel 321 Fully Threaded Stud Bolts | Stainless Steel 321 Tap End Stud Bolts | M02 to M33, Custom Sizes |
| Stainless Steel 321 Double End Stud Bolts | Stainless Steel 321 Stud Bolts with Reduced Shank | |
| Stainless Steel 321 Reduced Shank | Stainless Steel 321 Flange Stud Bolts | |
| Stainless Steel 321 Flange Bolting | Stainless Steel 321 Weld Studs | |
| Stainless Steel 321 Threaded Stud Bolts | Stainless Steel 321 Threaded Studs | |
| Stainless Steel 321 Continuous Thread Stud Bolt | Stainless Steel 321 Partial Threaded Stud Bolt | |
| Stainless Steel 321 Reduced Shank Stud Bolt | Stainless Steel 321 Allen Heavy Stud Bolts | |
ANSI And/Or ASME Standards Stud Bolt (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Continuous Thread Stud Bolts | ANSI/ASME B18.31.2 | Inch Series |
| Stud Bolts with Chamfered End for Flange Bolting | ANSI/ASME B16.5 | Inch Series |
| Welding Studs / Weld Studs | DIN 525 | Metric |
| Double End Stud Bolts / Double Ended Studs | DIN 835 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter | DIN 938 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 1.25 x Diameter | DIN 939 | Metric |
| Double End Stud Bolts with Thread Engagement Length Equals to 2.5 x Diameter | DIN 940 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2D | DIN 949-1 | Metric |
| Double End Studs With Thread Engagement Length Equals to 2.5D | DIN 949-2 | Metric |
| Plain End Stud Bolts / Threaded Rods | DIN 975 | Inch Series |
| Plain End Stud Bolts / Threaded Rods | DIN 976 | Metric |
| Double End Studs / Stud Bolts | DIN 2509 | Metric |
| Double End Stud Bolts With Reduced Shank | DIN 2510 L, DIN 2510 Z, DIN 2510 K, DIN 2510 ZU/KU, DIN 2510 GP, DIN 2510 GQ, DIN 2510 GR, DIN 2510 GS, DIN 2510 HP | Metric |
| Studs / Stud Bolts | BS 2693 | Inch Series |
| Stud Bolts | BS 3692 | Metric |
| Double End Stud Bolts With Thread Engagement Length Equals to 1.5 x Diameter | BS 4439 | Metric |
| Stud Bolts | IS 1862 | Metric |
| Clamping Studs | IS 13218 | Metric |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
SS 321 Stud Bolt Size Chart
| Class 150 Flanges ASME B16.5 (Stud bolt sizes) | Length of Stud Bolts | |||||||
|---|---|---|---|---|---|---|---|---|
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 1/2 | 2 3/8 | 5/8 | 4 | 1/2 | 2 1/4 | – | |
| 3/4 | 3 7/8 | 2 3/4 | 5/8 | 4 | 1/2 | 2 1/2 | – | |
| 1 | 4 1/4 | 3 1/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 1 1/4 | 4 5/8 | 3 1/2 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 1 1/2 | 5 | 3 7/8 | 5/8 | 4 | 1/2 | 2 3/4 | 3 1/4 | |
| 2 | 6 | 4 3/4 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 2 1/2 | 7 | 5 1/2 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 | 7 1/2 | 6 | 3/4 | 4 | 5/8 | 3 1/2 | 4 | |
| 3 1/2 | 8 1/2 | 7 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 4 | 9 | 7 1/2 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 5 | 10 | 8 1/2 | 7/8 | 8 | 3/4 | 3 3/4 | 4 1/4 | |
| 6 | 11 | 9 1/2 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 8 | 13 1/2 | 11 3/4 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 10 | 16 | 14 3/4 | 1 | 12 | 7/8 | 4 1/2 | 5 | |
| 12 | 19 | 17 | 1 | 12 | 7/8 | 4 3/4 | 5 1/4 | |
| 14 | 21 | 18 3/4 | 1 1/8 | 12 | 1 | 5 1/4 | 5 3/4 | |
| 16 | 23 1/2 | 21 1/4 | 1 1/8 | 16 | 1 | 5 1/4 | 5 3/4 | |
| 18 | 25 | 22 3/4 | 1 1/4 | 16 | 1 1/8 | 5 3/4 | 6 1/4 | |
| 20 | 27 1/2 | 25 | 1 1/4 | 20 | 1 1/8 | 6 1/4 | 6 3/4 | |
| 24 | 32 | 29 1/2 | 1 1/4 | 20 | 1 1/4 | 6 3/4 | 7 1/4 | |
| Class 300 Flanges ASME B16.5 | Length of Stud Bolts | |||||||
| NPS | Outside Diameter of Flange | The diameter of Bolt Circle | The diameter of Bolt Holes | Number of Bolts | Diameter of Bolts | Raised Face 0.06 in |
Ring Joint | |
| 1/2 | 3 3/4 | 2 5/8 | 5/8 | 4 | 1/2 | 2 1/2 | 3 | |
| 3/4 | 4 5/8 | 3 1/4 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 | 4 7/8 | 3 1/2 | 3/4 | 4 | 5/8 | 3 | 3 1/2 | |
| 1 1/4 | 5 1/4 | 3 7/8 | 3/4 | 4 | 5/8 | 3 1/4 | 3 3/4 | |
| 1 1/2 | 6 1/8 | 4 1/2 | 7/8 | 4 | 3/4 | 3 1/2 | 4 | |
| 2 | 6 1/2 | 5 | 3/4 | 8 | 5/8 | 3 1/2 | 4 | |
| 2 1/2 | 7 1/2 | 5 7/8 | 7/8 | 8 | 3/4 | 4 | 4 1/2 | |
| 3 | 8 1/4 | 6 5/8 | 7/8 | 8 | 3/4 | 4 1/4 | 4 3/4 | |
| 3 1/2 | 9 | 7 1/4 | 7/8 | 8 | 3/4 | 4 1/4 | 5 | |
| 4 | 10 | 7 7/8 | 7/8 | 8 | 3/4 | 4 1/2 | 5 | |
| 5 | 11 | 9 1/4 | 7/8 | 8 | 3/4 | 4 3/4 | 5 1/4 | |
| 6 | 12 1/2 | 10 5/8 | 7/8 | 12 | 3/4 | 4 3/4 | 5 1/2 | |
| 8 | 15 | 13 | 1 | 12 | 7/8 | 5 1/2 | 6 | |
| 10 | 17 1/2 | 15 1/4 | 1 1/8 | 16 | 1 | 6 1/4 | 6 3/4 | |
| 12 | 20 1/2 | 17 3/4 | 1 1/4 | 16 | 1 1/8 | 6 3/4 | 7 1/4 | |
| 14 | 23 | 20 1/4 | 1 1/4 | 20 | 1 1/8 | 7 | 7 1/2 | |
| 16 | 25 1/2 | 22 1/2 | 1 3/8 | 20 | 1 1/4 | 7 1/2 | 8 | |
| 18 | 28 | 24 3/4 | 1 3/8 | 24 | 1 1/4 | 7 3/4 | 8 1/4 | |
| 20 | 30 1/2 | 27 | 1 3/8 | 24 | 1 1/4 | 8 | 8 3/4 | |
| 24 | 36 | 32 | 1 5/8 | 24 | 1 1/2 | 9 | 10 | |
SS 321 Double Ended Stud Bolts Weights
| Metric Studs Bolts Weights | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M20 | M22 | M24 | M30 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | ||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | ||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 32,5 | |||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 34,5 | 45,5 | ||||
| 100 | 7,6 | 11 | 16 | 21 | 36,7 | 47,2 | 54,2 | |||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 38,7 | 48,3 | 58,2 | |||
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 46,9 | 58,5 | 69,2 | 121 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 49 | 61 | 72,2 | 126 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 51,1 | 63,5 | 75,2 | 130 | 206 | 253 | |
| 200 | 34,5 | 56,2 | 71 | 84 | 144 | 226 | 278 | |||
| 210 | 35,8 | 58,5 | 73,5 | 88,4 | 149 | 233 | 286 | |||
| 230 | 38,5 | 62,6 | 78,6 | 94,4 | 159 | 247 | 302 | |||
| 240 | 39,8 | 64,7 | 81,2 | 97,4 | 164 | 253 | 310 | |||
| 250 | 41,1 | 66,8 | 83,7 | 100,4 | 172 | 260 | 319 | |||
| 260 | 68,8 | 86,3 | 103,4 | 177 | 267 | 327 | ||||
| 270 | 70,9 | 88,8 | 106,4 | 182 | 274 | 335 | ||||
| 280 | 73 | 91,4 | 109,4 | 187 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 192 | 291 | 360 | ||||
| 300 | 77,1 | 96,5 | 115,4 | 196 | 298 | 368 | ||||
| 320 | 101,6 | 121,3 | 206 | 312 | 380 | |||||
| 360 | 133,3 | 224 | 340 | 411 | ||||||
| 380 | 234 | 353 | 428 | |||||||
| 400 | 243 | 367 | 444 | |||||||
| 420 | 252 | 381 | 460 | |||||||
| 460 | 271 | 408 | 493 | |||||||
| 480 | 281 | 422 | 509 | |||||||
| 500 | 290 | 436 | 526 | |||||||
| Imperial Weight Chart | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| STUD BOLT LENGTH (in mm) | M10 | M12 | M14 | M16 | M20 | M22 | M24 | M30 | M36 | M39 |
| 60 | 5,6 | 8,1 | 12 | 15,6 | ||||||
| 70 | 6,1 | 8,9 | 13 | 16,9 | ||||||
| 80 | 6,6 | 9,6 | 14 | 18,2 | 32,5 | |||||
| 90 | 7,1 | 10,3 | 15 | 19,6 | 34,5 | 45,5 | ||||
| 100 | 7,6 | 11 | 16 | 21 | 36,7 | 47,2 | 54,2 | |||
| 110 | 8,1 | 11,7 | 17 | 22,2 | 38,7 | 48,3 | 58,2 | |||
| 150 | 10,1 | 14,9 | 20,8 | 27,5 | 46,9 | 58,5 | 69,2 | 121 | 192 | 237 |
| 160 | 10,6 | 15,6 | 21,8 | 29,1 | 49 | 61 | 72,2 | 126 | 199 | 245 |
| 170 | 16,4 | 22,8 | 30,4 | 51,1 | 63,5 | 75,2 | 130 | 206 | 253 | |
| 200 | 34,5 | 56,2 | 71 | 84 | 144 | 226 | 278 | |||
| 210 | 35,8 | 58,5 | 73,5 | 88,4 | 149 | 233 | 286 | |||
| 230 | 38,5 | 62,6 | 78,6 | 94,4 | 159 | 247 | 302 | |||
| 240 | 39,8 | 64,7 | 81,2 | 97,4 | 164 | 253 | 310 | |||
| 250 | 41,1 | 66,8 | 83,7 | 100,4 | 172 | 260 | 319 | |||
| 260 | 68,8 | 86,3 | 103,4 | 177 | 267 | 327 | ||||
| 270 | 70,9 | 88,8 | 106,4 | 182 | 274 | 335 | ||||
| 280 | 73 | 91,4 | 109,4 | 187 | 281 | 343 | ||||
| 290 | 75 | 93,9 | 112,4 | 192 | 291 | 360 | ||||
| 300 | 77,1 | 96,5 | 115,4 | 196 | 298 | 368 | ||||
| 320 | 101,6 | 121,3 | 206 | 312 | 380 | |||||
| 360 | 133,3 | 224 | 340 | 411 | ||||||
| 380 | 234 | 353 | 428 | |||||||
| 400 | 243 | 367 | 444 | |||||||
| 420 | 252 | 381 | 460 | |||||||
| 460 | 271 | 408 | 493 | |||||||
| 480 | 281 | 422 | 509 | |||||||
| 500 | 290 | 436 | 526 | |||||||
SS 321 Stud Bolt Torque Chart
| Flange Size |
B16.5 Class 150 RF/ Ring Gaskets | B16.5 Class 150 FF/ Full Face Gaskets | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | Torque / Round (ft-lbs) | Stud Bolts Tighten Sequence | |||||||
| 1st | 2nd | Final | Dwg/No. | Bolt Size | 1st | 2nd | Final | Dwg*/No. | Bolt Size | |
| 1/2″ | 10 | 20 | 30 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 3/4″ | 13 | 27 | 40 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1″ | 15 | 30 | 50 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/4″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 1-1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ | 20 | 40 | 60 | 4-bolt | 1/2″ |
| 2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 2-1/2″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3″ | 40 | 80 | 120 | 4-bolt | 5/8″ | 40 | 80 | 120 | 4-bolt | 5/8″ |
| 3-1/2″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 4″ | 40 | 80 | 120 | 8-bolt | 5/8″ | 40 | 80 | 120 | 8-bolt | 5/8″ |
| 5″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 6″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 8″ | 60 | 120 | 200 | 8-bolt | 3/4″ | 60 | 120 | 200 | 8-bolt | 3/4″ |
| 10″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 12″ | 95 | 190 | 320 | 12-bolt | 7/8″ | 95 | 190 | 320 | 12-bolt | 7/8″ |
| 14″ | 147 | 294 | 490 | 12-bolt | 1″ | 147 | 294 | 490 | 12-bolt | 1″ |
| 16″ | 147 | 294 | 490 | 16-bolt | 1″ | 147 | 294 | 490 | 16-bolt | 1″ |
| 18″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ | 213 | 426 | 710 | 16-bolt | 1-1/8″ |
| 20″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ | 213 | 426 | 710 | 20-bolt | 1-1/8″ |
| 24″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ | 300 | 600 | 1,000 | 20-bolt | 1-1/4″ |
Stainless Steel 321 Stud Bolts Dimension
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
|---|---|---|---|
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
Other Types of SS 321 Stud Bolts
| ASTM A193 SS 321 MS Stud Bolts | 321 Stainless Steel Metric Thread Stud Bolt |
| 321 Stainless Steel Threaded Stud | ASTM A193 SS 321 Stud Half Thread Bolts |
| Stainless Steel 321 Hex Studs | SS DIN 1.4541 Flange Stud Bolts |
| SS DIN 1.4541 Stud Bolts | Stainless Steel 321 Hex Head Stud Bolts |
| SS EN X6CrNiTi18-10 Export Quality Stud Bolts | 321 SS Heavy Stud Bolts |
| 321 SS Heavy Stud Bolts | SS EN X6CrNiTi18-10 Heavy Stud Bolts |
| SS UNS S32100 Weld Studs | ASME B18.2.1 SS 321 Fully Threaded Stud Bolts, |
| ASME B18.2.1 SS 321 Half Threaded Stud Bolts | SS UNS S32100 Stud Bolts |
| SS JIS SUS 321 Single End Stud Bolts | Stainless Steel 321 Hex Bolts |
| 321 Stainless Steel Threaded Stud Bolts | SS JIS SUS 321 Tension Control Bolt |
