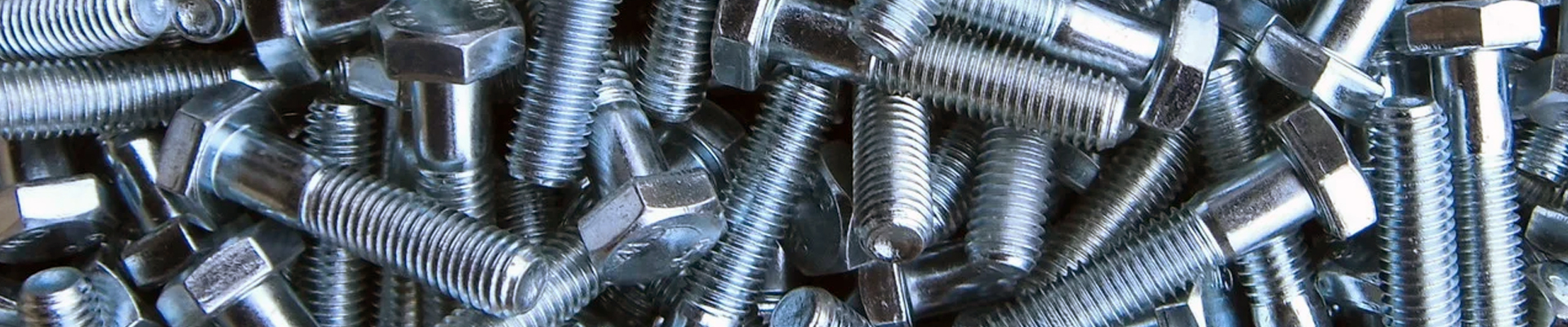

Stainless Steel 347/347H Bolts
Stainless Steel 347 Stud Bolt, ASTM A193 347H Stainless Steel Carriage Bolts, SS DIN 1.4550 Machine Bolts, Stainless Steel X6CrNiNb18-10 Elevator Bolt Suppliers in India.
Ranfit Metal & Alloys is a popular supplier of SS 347 / 347H Bolts, which can also be slit to your desired width. Stainless Steel 347 Hex Head Bolts has excellent resistance to inter-granular corrosion and also has excellent weldability. Stainless Steel 347H Square Bolts is therefore the standard consumable for welding. SS 347 U-Bolts might also be considered for exposures where sensitization and inter-granular corrosion are concerns. This result in higher elevated temperature allowable stresses for this stabilized SS 347H Eye Bolts for several applications. 347 Stainless Steel T-Bolts has oxidation resistant up to 1600 Degree F. 347H Stainless Steel Hex Bolts is used in super-heater and afterburner parts. Stainless Steel UNS S34700 Bolts is often used in diesel and heavy duty auto exhaust systems, along with in high temperature chemical process equipment.
A preheating is not necessary for Stainless Steel UNS S34709 Bolts, because it has excellent forming characteristics. Annealing for Alloy 347 Lag Bolts is often not required after welding unless stress relief is desired. The fusion point is lower than that of non-alloyed steels, and so Alloy 347H Counter Sunk Bolts have to be welded with lower heat input than non-alloyed steels. Grade 347 Hex Head Bolts is very ductile and forms easily. Grade 347H Square Bolts is also used in aircraft exhaust stacks and manifolds. Type 347 Eye Bolts cannot be hardened by heat treatment, only by cold working.
SS EN X6CrNiNb18-12 Bolts Supplier, SS 347 Full Threaded Bolts, ASME SF593 Stainless Steel 347H 12 Point Flange Bolts, SS UNS S34700 Hex Head Bolts Supplier & Exporter in India.
Stainless Steel 347/347H Bolts Specification
| Grade | Stainless Stel 347 (S34700) | Stainless Stel 347H (S34709) |
|---|---|
| SS 347/347H Bolt size | M 02 to M 160, Custom Sizes |
| SS 347/347H Bolts Length | 3 mm to 200 mm |
| SS 347/347H Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of SS 347/347H Bolts | IS1364, ISO 4014, ISO 4017, DIN 933, DIN 931, BS 1083, BS 1768, ASME B18.2.1, JIS B1180, DIN 558, ISO 4018, DIN-EN14399-4, DIN 601, ISO 4016, CSN 21301, EU 24016, DIN 7968, DIN7990, ASME B18.2.1, B18.5 |
| Form of SS 347/347H Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Bolts | Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
| SS 347/347H Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Bolts | Six-Lobe,Phillips,Phillips/Slot, Slotted etc |
| Packing of Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Ptfe Coated Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| SS 347/347H Bolts finishing | Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide, |
Stainless Steel 347/347H Bolts Equivalent Grades
| AISI Grade Equivalent | ASTM | JIS Equivalent | Stainless Steel Notation | EN/DIN Numerical Equivalent | UNS Designation | EN/DIN Symbolical Equivalent |
| 347 | A193 | SUS 347 | SS 347 | EN 1.4550 | UNS S34700 | X6CrNiNb18-12 |
| 347H | A193 | SUS 347H | SS 347H | EN 1.4961 | UNS S34709 | X6CrNiNb18-12 |
Chemical Composition of SS 347/347H Bolts
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
| SS 347H | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
Mechanical Properties of SS 347/347H Bolts
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| SS 347/347H | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Types of Stainless Steel 347/347H Bolts
Stainless Steel 347/347H Hollow Allen Bolts
Stainless Steel 347/347H Anchor Bolts
Stainless Steel 347/347H Hex Bolts
Stainless Steel 347/347H Allen Cap Bolts
Stainless Steel 347/347H J Bolts
Stainless Steel 347/347H U Bolts
Stainless Steel 347/347H Square Bolts
Stainless Steel 347/347H Carriage Bolts
Stainless Steel 347/347H Long Eye Bolts
SS 347/347H Bolts Forms & Availability
| Products | Size | |
|---|---|---|
| Stainless Steel 347/347H Heavy Hex Bolts | Stainless Steel 347/347H Hollow Hex Bolts | M 02 to M 160, Custom Sizes |
| Stainless Steel 347/347H Hollow Allen Bolts | Stainless Steel 347/347H Machine Bolts | |
| Stainless Steel 347/347H Socket Head Bolts | Stainless Steel 347/347H Hex Flange Bolts | |
| Stainless Steel 347/347H Eye Bolts | Stainless Steel 347/347H Lag Bolts | |
| Stainless Steel 347/347H J Bolts | Stainless Steel 347/347H U Bolts | |
| Stainless Steel 347/347H Shoulder Bolts | Stainless Steel 347/347H Elevator Bolts | |
| Stainless Steel 347/347H Hanger Bolts | Stainless Steel 347/347H Allen Bolts | |
ASTM F468 Fasteners Standard
| Hexagon Bolt / Set Screws | Stud Bolt | Hexagon Nuts | Socket Cap screws |
|---|---|---|---|
| DIN 931 | BS4882 | DIN 934 | DIN 912 |
| DIN 933 | DIN 976 | BS 1768 | DIN 6912 |
| BS 1768 | BS 1769 | DIN 7984 | |
| UNI 5731 | BS 1083 | ANSI B18.3 | |
| UNI 5739 | BS 3692 | ISO 4762 | |
| ISO 4014 | ISO 4032 | UNI 5931 | |
| ISO 4017 | ISO 4033 | BS 2470 | |
| BS 1769 | ANSI B18.2.2 | BS 4168 | |
| BS 3692 | |||
| ANSI B18.2.1 | |||
| Socket & Slotted Set Screws | Socket & Slotted Countersunk Screws | Studs | Washers |
| DIN 913 | DIN 963 | DIN 938 | DIN 125 |
| DIN 914 | DIN 7991 | DIN 939 | DIN 9021 |
| DIN 915 | BS 4168 | DIN 2510 | BS 4320 |
| DIN 916 | BS 1981 | BS 4439 | BS 3410 |
| DIN 551 | BS 483 | BS 2693 | |
| DIN 553 | BS 2470 | Spring Washers | |
| DIN 438 | DIN 127 | ||
| BS 4168 | BS 4464 | ||
| BS 1802 |
ANSI And/Or ASME Standards Bolts (Inch Series)
| Description | Standard | Measurement System |
|---|---|---|
| Square & Hex Head Bolts | ANSI/ASME B18.2.1 | Inch Series |
| Hex Head Bolts | ANSI/ASME B18.2.3.5M | Metric |
| Heavy Hex Bolts | ANSI/ASME B18.2.3.6M | Metric |
| Heavy Hex Structural Bolts | ANSI/ASME B18.2.3.7M | Metric |
| Square Head Bolts | ANSI/ASME B18.2.3.10M | Metric |
| Round Head Bolts | ANSI/ASME B18.5 | Inch Series |
| Round Head Short Square Neck Bolts | ANSI/ASME B18.5.2.1M | Metric |
| Round Head Square Neck Bolts | ANSI/ASME B18.5.2.2M | Metric |
| Round Head Square Neck Bolts With Large Head | ANSI/ASME B18.5.2.3M | Metric |
| Track Bolts | ANSI/ASME B18.10 | Inch Series |
| Forged Eye Bolts | ANSI/ASME B18.15 | Inch Series |
| Lifting Eye Bolts | ANSI/ASME B18.15M | Metric |
| Hex Head Bolts | DIN 931 | Metric |
| Heavy Hex Bolts | DIN 6914 | Metric |
| Countersunk Square Head Bolts With Short Neck | DIN 608 | Metric |
| Lifting Eye Bolts (Type A) | DIN 444A | Metric |
| Lifting Eye Bolts (Type B) | DIN 444B | Metric |
| Square Head Bolts With Collar | DIN 478 | Metric |
| Forged Lifting Eyes/Eye Bolts | DIN 580 | Metric |
| Carriage Bolts | DIN 603 | Metric |
| Flat Countersunk Nib Bolts | DIN 604 | Metric |
| Carriage Bolts | DIN 607 | Metric |
| U Bolts | DIN 3570 | Metric |
| Hex Flange Bolts | DIN 6921 | Metric |
| Plough Bolts with 2 Nibs | DIN 11014 | Metric |
| Hex Head Bolts with Shank | ISO 4014 | Metric |
| Hex Head Bolts with Nuts | ISO 4016 | Metric |
| Full Thread Hex Head Bolts | ISO 4017 | Metric |
| Hex Flange Bolts | ISO 4162 | Metric |
| Hex Flange Bolts | ISO 8100 | Metric |
| Hex Bolt With Flange | ISO 8102 | Metric |
| Hex Flange Bolts | ISO 15071 | Metric |
| Mushroom Head Square Neck Bolts | ISO 8677 | Metric |
| Fine Threaded Hex Head Bolts | ISO 8765 | Metric |
| Hex Head Bolts | IS 1363 Part 1 | Metric |
| Hex Head Bolts | IS 1363 Part 2 | Metric |
| Hex Head Bolts | IS 1364 Part 1 | Metric |
| Hex Head Bolts For Structural Joints | IS 6639 | Metric |
| Hex Head Transmission Tower Bolts | IS 12427 | Metric |
| Hexagon Flange Bolts | IS 15582 | Metric |
Property Class
| For Bolts & Screws | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H |
| For Nuts | A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040 |
| For SHCS | F837B, F837C, F837E, F837 |
| For Threaded Rods | A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
SS 347/347H Bolts Dimensions
| **All measurements in millimeters** | ||||||||
|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
ASME SF468 Heavy Hex Bolts Dimensions
| Diameter (D) | Body Diameter (D) | Across the Flats (F) | Across the Corners © | Head Height (H) | Thread Lengths (T) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | < 6” | > 6” | |
| 1/2 | 0.515 | 0.482 | 0.875 | 0.85 | 1.01 | 0.969 | 0.364 | 0.302 | 1.25 | 1.5 |
| 5/8 | 0.642 | 0.605 | 1.062 | 1.031 | 1.227 | 1.175 | 0.444 | 0.378 | 1.5 | 1.75 |
| 3/4 | 0.768 | 0.729 | 1.25 | 1.212 | 1.443 | 1.383 | 0.524 | 0.455 | 1.75 | 2 |
| 7/8 | 0.895 | 0.852 | 1.438 | 1.394 | 1.66 | 1.589 | 0.604 | 0.531 | 2 | 2.25 |
| 1 | 1.022 | 0.976 | 1.625 | 1.575 | 1.876 | 1.796 | 0.7 | 0.591 | 2.25 | 2.5 |
| 1 1/8 | 1.149 | 1.098 | 1.812 | 1.756 | 2.093 | 2.002 | 0.78 | 0.658 | 2.5 | 2.75 |
| 1 1/4 | 1.277 | 1.223 | 2 | 1.938 | 2.309 | 2.209 | 0.876 | 0.749 | 2.75 | 3 |
| 1 3/8 | 1.404 | 1.345 | 2.188 | 2.119 | 2.526 | 2.416 | 0.94 | 0.81 | 3 | 3.25 |
| 1 1/2 | 1.531 | 1.47 | 2.375 | 2.3 | 2.742 | 2.622 | 1.036 | 0.902 | 3.25 | 3.5 |
| 1 3/4 | 1.785 | 1.716 | 2.75 | 2.662 | 3.175 | 3.035 | 1.196 | 1.054 | 3.75 | 4 |
| 2 | 2.039 | 1.964 | 3.125 | 3.025 | 3.608 | 3.449 | 1.388 | 1.175 | 4.25 | 4.5 |
| 2 1/4 | 2.305 | 2.214 | 3.5 | 3.388 | 4.041 | 3.862 | 1.548 | 1.327 | 4.75 | 5 |
| 2 1/2 | 2.559 | 2.461 | 3.875 | 3.75 | 4.474 | 4.275 | 1.708 | 1.479 | 5.25 | 5.5 |
| 2 3/4 | 2.827 | 2.711 | 4.25 | 4.112 | 4.907 | 4.688 | 1.869 | 1.632 | 5.75 | 6 |
| 3 | 3.081 | 2.961 | 4.625 | 4.475 | 5.34 | 5.102 | 2.06 | 1.815 | 6.25 | 6.5 |
SS 347/347H Bolts Torque Chart
| Torque Specifications | ||||||
|---|---|---|---|---|---|---|
| Bolt Size Inches or # | Threads Per Inch | Standard Dry Torque in Inch-Pounds | ||||
| 347/347H Stainless Steel | ||||||
| #2 | 56 | 2.5 | ||||
| 64 | 3.0 | |||||
| #3 | 48 | 3.9 | ||||
| 56 | 4.4 | |||||
| #4 | 40 | 5.2 | ||||
| 48 | 6.6 | |||||
| #5 | 40 | 7.7 | ||||
| 44 | 9.4 | |||||
| #6 | 32 | 9.6 | ||||
| 40 | 12.1 | |||||
| #8 | 32 | 19.8 | ||||
| 36 | 22.0 | |||||
| #10 | 24 | 22.8 | ||||
| 32 | 31.7 | |||||
| 1/4 | 20 | 75.2 | ||||
| 28 | 94.0 | |||||
| 5/16 | 18 | 132 | ||||
| 24 | 142 | |||||
| 3/8 | 16 | 236 | ||||
| 24 | 259 | |||||
| 7/16 | 14 | 376 | ||||
| 20 | 400 | |||||
| 1/2 | 13 | 517 | ||||
| 20 | 541 | |||||
| 9/16 | 12 | 682 | ||||
| 18 | 752 | |||||
| 5/8 | 11 | 1110 | ||||
| 18 | 1244 | |||||
| 3/4 | 10 | 1530 | ||||
| 16 | 1490 | |||||
| 7/8 | 9 | 2328 | ||||
| 14 | 2318 | |||||
| 1 | 8 | 3440 | ||||
| 14 | 3110 | |||||
| 1 1/8 | 7 | 413 | ||||
| 12 | 390 | |||||
| 1 1/4 | 7 | 523 | ||||
| 12 | 480 | |||||
| 1 1/2 | 6 | 888 | ||||
| 12 | 703 | |||||
Stainless Steel 347/347H Bolts Sizes
| Stainless Steel 347/347H Bolts size chart | Stainless Steel 347/347H Bolts size guide | Stainless Steel 347/347H Bolts dimensions |
|---|---|---|
| 3/8″-16 x 1″ Grade 5 Finish Stainless Steel 347/347H Bolts | 1/2″-13 x 1-1/2″ Grade 5 Finish Stainless Steel 347/347H Bolts | 1/4″-20 x 1″ Grade 5 Finish Stainless Steel 347/347H Bolts |
| 3/8″-16 x 1-1/4″ Grade 5 Finish Stainless Steel 347/347H Bolts | 3/8″-16 x 1-1/2″ Grade 5 Finish Stainless Steel 347/347H Bolts | 1/4″-20 x 3/4″ Grade 5 Finish Stainless Steel 347/347H Bolts |
| 1/2″-13 x 2″ Grade 8 Yellow Finish Stainless Steel 347/347H Bolts | 1/2″-13 x 2″ Grade 5 Finish Stainless Steel 347/347H Bolts | 1/2″-13 x 1-1/2″ Grade 8 Yellow Finish Stainless Steel 347/347H Bolts |
| 5/8″-11 x 2″ Grade 8 Yellow Finish Stainless Steel 347/347H Bolts | 1/4″-20 x 3/4″ Grade 18-8 Stainless Steel Stainless Steel 347/347H Bolts | 5/16″-18 x 1″ Grade 5 Finish Stainless Steel 347/347H Bolts |
| 3/8″-16 x 1″ Grade 8 Yellow Finish Stainless Steel 347/347H Bolts | 3/8″-16 x 1″ Grade 18-8 Stainless Steel Stainless Steel 347/347H Bolts | 3/8″-16 x 1-1/2″ Grade 8 Yellow Finish Stainless Steel 347/347H Bolts |
| 1/4″-20 x 1″ Grade 18-8 Stainless Steel Stainless Steel 347/347H Bolts | 5/8″-11 x 2″ Grade 5 Finish Stainless Steel 347/347H Bolts | 5/8″-11 x 2-1/2″ Grade 8 Yellow Finish Stainless Steel 347/347H Bolts |
| 3/8″-16 x 2″ Grade 5 Finish Stainless Steel 347/347H Bolts | 3/8″-16 x 1-1/4″ Grade 8 Yellow Finish Stainless Steel 347/347H Bolts |
347/347H Stainless Steel Bolts Weight Chart
| MM THREADS AS PER IS 1363/67 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| APPROXIMATE WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGTH | DIAMETER | |||||||||
| M 5 | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | |
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
Other Types of SS 347/347H Bolts
| Stainless Steel 347 Hex Cap Screw | SS DIN 1.4550 Shoulder Bolt |
| SS DIN 1.4961 Hanger Bolt | Stainless Steel 347 Socket Cap Screw |
| SS 347H Anchor Bolt | 347 Stainless Steel Machine Bolt |
| 347 Stainless Steel Draw Bolt | SS 347H J Bolt |
| SUS 347H SS Countersunk Slotted Screw | SS EN X6CrNiNb18-12 DIN 933 Bolts |
| SS EN X6CrNiNb18-12 Hanger Bolt | SUS 347H SS T Bolt |
| SS UNS S34700 Steel Counter sunk Bolt | ASTM A193 347 Stainless Steel Hex Bolt |
| ASTM A193 347H Stainless Steel Eye Bolt | SS UNS S34709 T Bolt |
| ASME SA193 Stainless Steel 347 Lag Bolt | AISI Grade 347 Stainless Steel Step Bolt |
| AISI Grade 347H Stainless Steel Allen Bolts | ASME SA193 Stainless Steel 347H Anchor Bolts |
